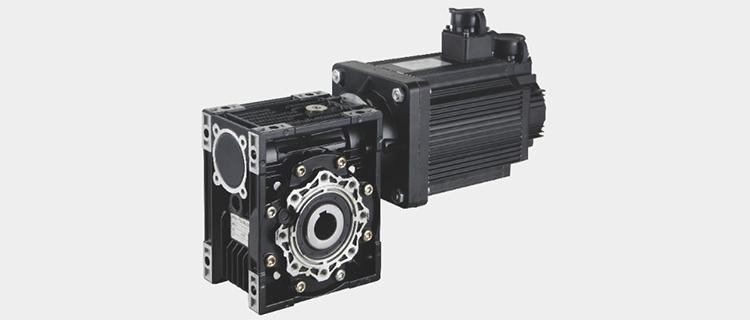

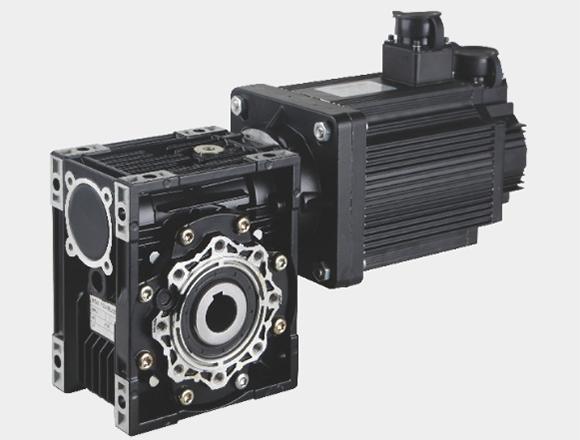

NMRV Servo Gear Reducer Model Selection

The following is the model selection table of NMRV series of servo gear motor and gear unit.

(n2=1500r/m)
NMRV ST 5 7.5 10 15 20 25 30 40 50 60 80 100
040 100W √ √ √ √ √ √ √ √ √ √ √ √
200W √ √ √ √ √ √ √ √ √


050 100W ● ● ● ● ● ● ● √ √ √ √ √
200W ● ● ● ● ● ● ● √ √ √ √ √
400W √ √ √ √ √ √ √ √ √ √

500W √ √ √ √ √ √ √ √



750W √ √ √ √ √ √





063 200W X ● ● ● ● ● ● ● ● ● √ √
400W X ● ● ● ● ● ● √ √ √ √ √
500W X ● ● √ √ √ √ √ √ √

750W X √ √ √ √ √ √ √



1000W X √ √ √ √ √ √




1500W X √ √ √ √






075 500W X ● ● ● ● ● ● √ √ √ √ √
750W X ● ● ● ● ● √ √ √ √

1000W X √ √ √ √ √ √ √



1500W X √ √ √ √ √ √




2000W X √ √ √







3000W X √ √ √







4000W X √









090 750W X ● ● ● ● ● ● ● √ √ √ √
1000W X ● ● ● ● ● ● √ √ √

1500W X ● ● ● ● √ √ √ √ √

2000W X √ √ √ √ √ √




3000W X √ √ √ √ √ √




4000W X √ √ √ √






110 1000W X ● ● ● ● ● ● ● ● √ √ √
1500W X ● ● ● ● ● ● ● √ √ √
2000W X √ √ √ √ √ √ √ √ √

3000W X √ √ √ √ √ √ √ √


4000W X √ √ √ √ √ √




5000W X √ √ √ √






7500W X √ √








130 1500W X ● ● ● ● ● ● ● ● ● √ √
2000W X ● ● ● ● ● ● ● √ √ √ √
3000W X ● ● ● ● ● ● √ √ √

4000W X √ √ √ √ √ √ √ √ √

5000W X √ √ √ √ √ √ √



7500W X √ √ √ √ √





150 2000W X ● ● ● ● ● ● ● √ √ √ √
3000W X ● ● ● ● ● ● √ √ √ √ √
4000W X ● ● ● ● √ √ √ √ √ √
5000W X ● ● ● √ √ √ √ √ √

7500W X ● ● ● √ √ √ √



11000W X √ √ √ √ √





15000W X √ √ √ √






● means that the configuration is available but not recommended;
The blank means that the configuration is not available;
√ means that the combination of electric motor and speed reducer is available.
