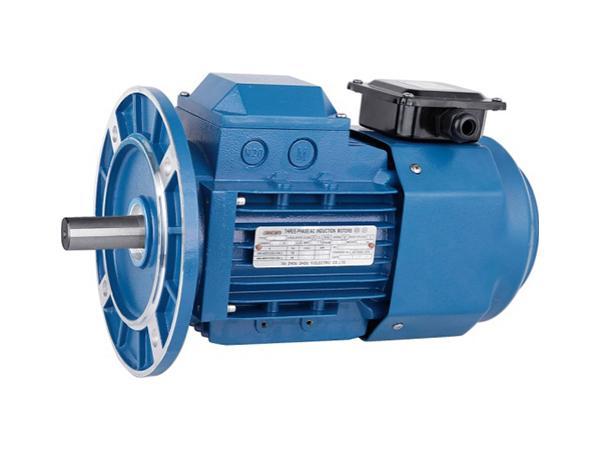

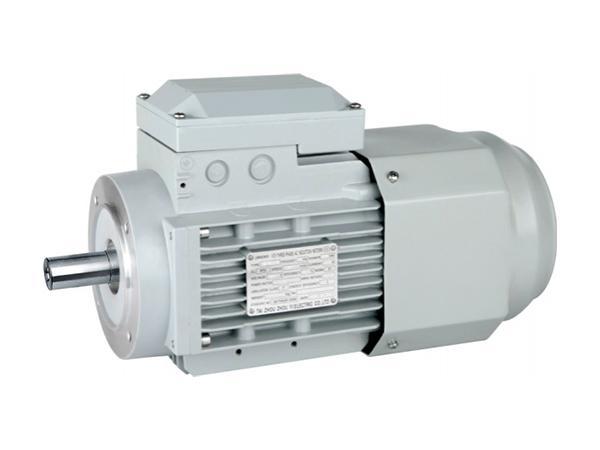

YVF2 Series Variable Speed AC Motor

Product description

The YVF2 series variable speed AC motor produced by ZHOUYI has good universality. The installation dimension meets the standard of IEC, so that it can be the replacement of the general standard electric motor. It can be widely used for food packaging machinery, chemical equipment, wood working machine, crane, construction machinery, compressor, transport conveyor, dredger, engine and transverter, washing machine, metal rolling machine, draught fan etc.

This series of electric motor can be divided into three models according to the speed:
1. The speed is 3000r/min and the rated power is from 0.18~22kw;
2. The speed is 1500r/min and the rated power is from 0.12~22kw;
3. The speed is 1000r/min and the rated power is from 0.18~15kw.

The adaptable voltage of all the three models of electric motors is 380V.

Technical parameters

3000r/min, 380V, 50Hz
Model Rated power Rated speed Efficiency Power factor Rated current Rated torque Locked-rotor torque Max torque Variable frequency fan
Rated torque Rated torque Voltage V Speed
Kw rpm η% COS ⌀ A Nm Ts/Tn Tmax/Tn 3 phase Single phase
YVF2-631-2 0.18 2800 65 0.80 0.53 0.61 2.2 2.2 380 220 2800
YVF2-632-2 0.25 2800 68.0 0.81 0.69 0.85 2.2 2.2 380 220 2800
YVF2-711-2 0.37 2830 70.0 0.81 0.99 1.25 2.2 2.2 380 220 2800
YVF2-712-2 0.55 2830 73.0 0.82 1.40 1.86 2.2 2.3 380 220 2800
YVF2-801-2 0.75 2840 75.0 0.83 1.83 2.52 2.2 2.3 380 220 2800
YVF2-802-2 1.1 2840 77.0 0.85 2.55 3.70 2.2 2.3 380 220 2800
YVF2-90S-2 1.5 2840 79.0 0.85 3.39 5.04 2.2 2.3 380 220 2800
YVF2-90L-2 2.2 2840 81.0 0.86 4.80 7.40 2.2 2.3 380 220 2800
YVF2-100L-2 3 2860 83.0 0.86 6.31 10.0 2.2 2.3 380 220 2800
YVF2-112M-2 4 2880 84.0 0.87 8.22 13.3 2.2 2.3 380 220 2800
YVF2-132S1-2 5.5 2910 85.0 0.88 11.2 18.0 2.2 2.3 380 220 2800
YVF2-132S2-2 7.5 2910 86.0 0.88 15.1 24.6 2.2 2.3 380 220 2800
YVF2- 160M1 -2 11 2930 88.0 0.88 21.3 35.9 2.2 2.3 380 220 2800
YVF2-160M2-2 15 2930 89.0 0.89 28.8 40.9 2.2 2.3 380 220 2800
YVF2-160L-2 10.5 2935 90.0 0.90 34.7 60.2 2.2 2.3 380 220 2800
YVF2-180M-2 22 2935 90.0 0.90 41.3 71.6 2.0 2.3 380 220 2800
1500r/min, 380V, 50Hz
Model Rated power Rated speed Efficiency Power factor Rated current Rated torque Locked-rotor torque Max torque Variable frequency fan
Rated torque Rated torque Voltage V Speed
Kw rpm η% COS ⌀ A Nm Ts/Tn Tmax/Tn 3 phase Single phase
YVF2-631-4 0.12 1360 57.0 0.72 0.44 0.84 2.2 2.0 380 220 2800
YVF2-632-4 0.19 1360 60.0 0.73 0.62 1.26 2.2 2.0 380 220 2800
YVF2-711-4 0.25 1375 65.0 0.74 0.79 1.74 2.2 2.0 380 220 2800
YVF2-712-4 0.37 1375 67.0 0.75 1.12 2.57 2.2 2.0 380 220 2800
YVF2-801-4 0.55 1405 71.0 0.75 1.57 3.74 2.2 2.4 380 220 2800
YVF2-802-4 0.75 1405 73.0 0.77 2.02 5.10 2.2 2.4 380 220 2800
YVF2-90S-4 1.1 1445 75.0 0.79 2.82 7.27 2.2 2.3 380 220 2800
YVF2-90L-4 1.5 1445 78.0 0.79 3.70 9.91 2.2 2.3 380 220 2800
YVF2-100L1-4 2.2 1440 80.0 0.81 5.16 14.6 2.2 2.3 380 220 2800
YVF2-100L2-4 3 1440 82.0 0.82 6.78 19.9 2.2 2.3 380 220 2800
YVF2-112M-4 4 1440 84.0 0.82 8.82 26.5 2.2 2.3 380 220 2800
YVF2-132S1-4 5.5 1440 85.0 0.84 11.7 36.5 2.2 2.3 380 220 2800
YVF2-132S2-4 7.5 1440 87.0 0.84 15.6 49.7 2.2 2.3 380 220 2800
YVF2-160M-4 11 1450 88.O 0.85 21.3 72.4 2.2 2.2 380 220 2800
YVF2-160L-4 15 1450 89.0 0.85 30.1 98.8 2.2 2.2 380 220 2800
YVF2-I80M-4 18.5 1455 90.5 0.86 36.5 121.4 2.2 2.2 380 220 2800
YVF2-180L-4 22 1455 91.0 0.86 43.1 144.4 2.0 2.2 380 220 2800
1000r/min, 380V, 50Hz
Model Rated power Rated speed Efficiency Power factor Rated current Rated torque Locked-rotor torque Max torque Variable frequency fan
Rated torque Rated torque Voltage V Speed
Kw rpm η% COS ⌀ A Nm Ts/Tn Tmax/Tn 3 phase Single phase
YVF2-711-6 0.18 900 58.0 0.66 0.71 1.91 1.9 2.0 380 220 2800
YVF2-712-6 0.25 900 59.0 0.68 0.95 2.65 1.9 2.0 380 220 2800
YVF2-801-6 0.37 910 62.0 0.70 1.30 3.88 1.9 2.0 380 220 2800
YVF2- 802 -6 0.55 910 65.0 0.72 1.79 5.77 1.9 2.1 380 220 2800
YVF2-90S-6 0.75 930 70.0 0.72 2.26 7.7 2.1 2.1 380 220 2800
YVF2-90L-6 1.1 940 73.0 0.73 3.14 11.2 2.1 2.1 380 220 2800
YVF2-100L-6 1.5 940 76.0 0.76 3.95 15.2 2.2 2.1 380 220 2800
YVF2-112M-6 2.2 960 79.0 0.76 5.57 21.9 2.2 2.1 380 220 2800
YVF2-132S-6 3 9G0 81.0 0.76 7.40 29.8 2.2 2.1 380 220 2800
YVF2-132M1-6 4 960 83.0 0.76 9.63 39.8 2.2 2.1 380 220 2800
YVF2-132M2-6 5.5 960 84.0 0.77 12.9 54.7 2.2 2.1 380 220 2800
YVF2-160M-6 7.5 970 86.0 0.78 17.0 73.8 1.8 2.1 380 220 2800
YVF2-160L -6 11 970 87.0 0.79 24.3 108.3 1.9 2.1 380 220 2800
YVF2-180L-6 15 970 89.0 0.81 31.6 147.7 2.1 2.1 380 220 2800

Model code:
(Take YVF2 - 90 - S - 4 - B5 as an example.)
YVF2: series code;
90: frame No.;
S: core code;
4: grade;
B5: installation method of electric motor.

Outline and installation dimension

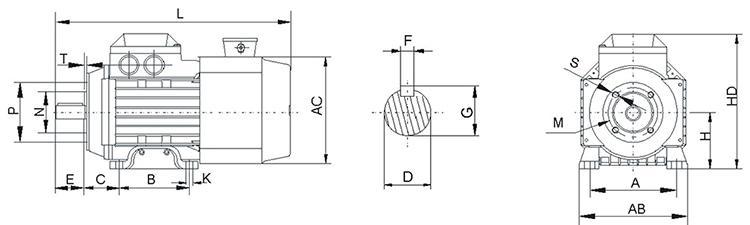

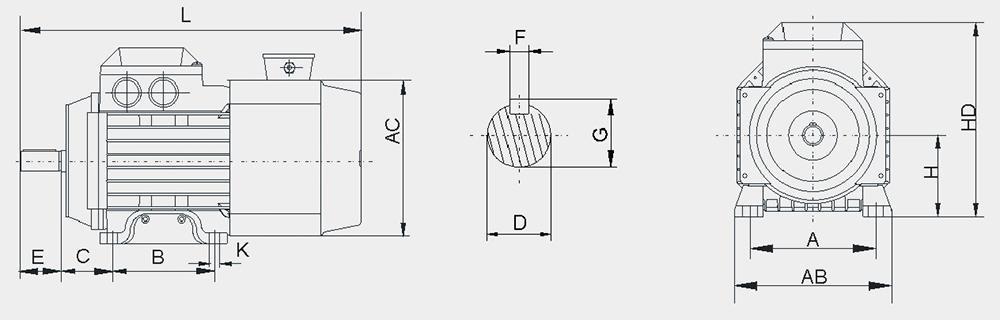

IM B3 H63-180
Dimension figure
Frame No. A B C D E F G H K AB AC HD L
63 100 80 40 ⌀11 23 4 12.5 63 ⌀7 135 120x120 167 270
71 112 90 45 ⌀14 30 5 16 71 ⌀7 137 130x130 178 315
80 125 100 50 ⌀19 40 6 21.5 80 ⌀10 155 145x145 190 340
90S 140 100 56 ⌀24 50 8 27 90 ⌀10 175 160x160 205 400
90L 140 125 56 ⌀24 50 8 27 90 ⌀10 175 160x160 205 400
100L 160 140 63 ⌀28 60 8 31 100 ⌀12 200 185x185 240 430
112M 190 140 70 ⌀28 60 8 31 112 ⌀12 230 200 x 200 270 480
132S 216 140 89 ⌀38 80 10 41 132 ⌀12 270 245 x 245 315 567
132M 216 178 89 ⌀38 80 10 41 132 ⌀12 270 245 x 245 315 567
160M 254 210 108 ⌀42 110 12 45 160 ⌀14.5 320 335x335 450 850
160L 254 254 108 ⌀42 110 12 45 160 ⌀14.5 320 335x335 450 870
180M 279 241 121 ⌀48 110 14 51.5 180 ⌀14.5 355 370x370 500 880
180L 279 279 121 ⌀48 110 14 51.5 180 ⌀14.5 355 370x370 500 980

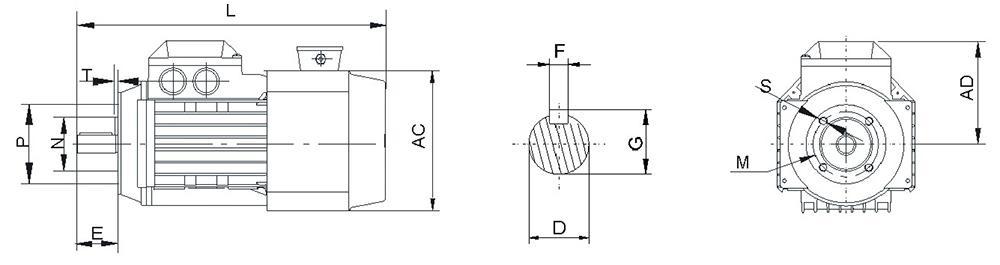

IM B14 H63-112
Dimension figure
Frame No. D E F G M N P S T AC AD L
63 ⌀11 23 4 12.5 75 60 90 M5 2.5 120x120 104 270
71 ⌀14 30 5 16 85 70 105 M6 2.5 130x130 107 315
80 ⌀19 40 6 21.5 100 80 120 M6 3.0 145x145 115 340
90S ⌀24 50 8 27 115 95 140 M8 3.0 160x160 122 400
90L ⌀24 50 8 27 115 95 140 M8 3.0 160x160 122 400
100L ⌀28 60 8 31 130 110 155 M8 3.5 185x185 137 430
112M ⌀28 60 8 31 130 110 160 M8 3.5 200x200 155 480

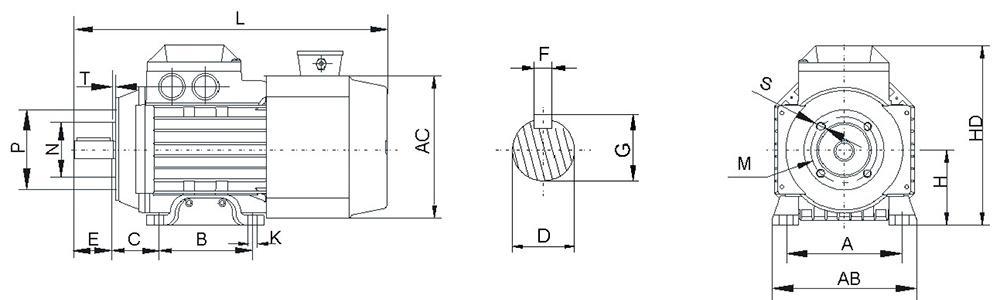

IM B34 H63-112
Dimension figure
Frame No. A B C D E F G H K M N P S T AB AC HD L
63 100 80 40 ⌀11 23 4 12.5 63 ⌀7 75 60 90 M5 2.5 135 120x120 167 270
71 112 90 45 ⌀14 30 5 16 71 ⌀7 85 70 105 M6 2.5 137 130x130 178 315
80 125 100 50 ⌀19 40 6 21.5 80 ⌀10 100 80 120 M6 3.0 155 145x145 190 340
90S 140 100 56 ⌀24 50 8 27 90 ⌀10 115 95 140 M8 3.0 175 160x160 205 400
90L 140 125 56 ⌀24 50 8 27 90 ⌀10 115 95 140 M8 3.0 175 160x160 205 400
100L 160 140 63 ⌀28 60 8 31 100 ⌀12 130 110 155 M8 3.5 200 185x185 240 430
112M 190 140 70 ⌀28 60 8 31 112 ⌀12 130 110 160 M8 3.5 230 200 x 200 270 480

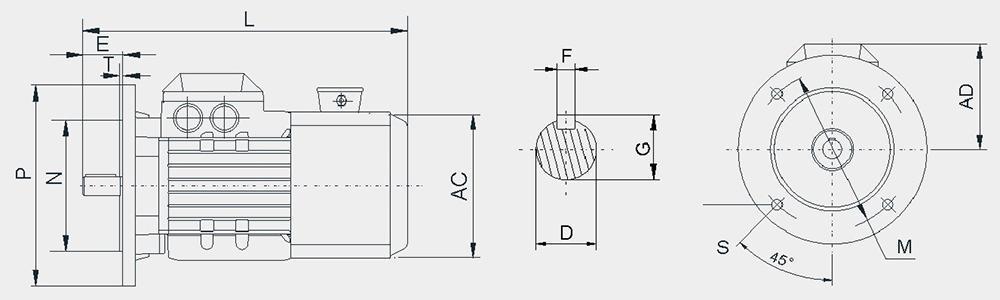

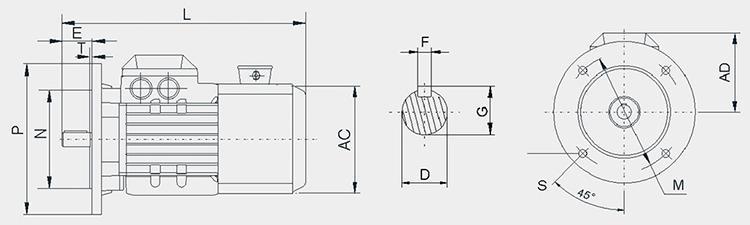

IM B5 H63-180
Dimension figure
Frame No. D E F G M N P S T AC AD L
63 ⌀11 23 4 12.5 115 95 140 10 3.0 120x120 104 280
71 ⌀14 30 5 16 130 110 160 10 3.5 130x130 107 315
80M ⌀19 40 6 21.5 165 130 200 12 3.5 145x145 115 340
90S ⌀24 50 8 27 165 130 200 12 3.5 160x160 122 400
90L ⌀24 50 8 27 165 130 200 12 3.5 160x160 122 400
100L ⌀28 60 8 31 215 180 250 14.5 4 185x185 137 430
112M ⌀28 60 8 31 215 180 250 14.5 4 200 x 200 155 480
132S ⌀38 80 10 41 265 230 300 14.5 4 245 x 245 180 567
132M ⌀38 80 10 41 265 230 300 14.5 4 245 x 245 180 567
160M ⌀42 110 12 45 300 250 350 18.5 5 335x335 290 850
160L ⌀42 110 12 45 300 250 350 18.5 5 335x335 290 870
180M ⌀48 110 14 51.5 300 250 350 18.5 5 370x370 340 880
180L ⌀48 110 14 51.5 300 250 350 18.4 5 370x370 340 980
IM B35 H63-180
Dimension figure
Frame No. A B C D E F G H K M N P S T AB AC HD L
63 100 80 40 ⌀11 23 4 12.5 63 ⌀7 115 95 140 10 2.5 115 120x120 167 280
71 112 90 45 ⌀14 30 5 16 71 ⌀7 130 110 160 10 3.5 136 130x130 178 315
80M 125 100 50 ⌀19 40 6 21.5 80 ⌀10 165 130 200 12 3.5 154 145x145 190 340
90S 140 100 56 ⌀24 50 8 27 90 ⌀10 165 130 200 12 3.5 180 160x160 205 400
90L 140 125 56 ⌀24 50 8 27 90 ⌀10 165 130 200 12 3.5 180 160x160 205 400
100L 160 140 63 ⌀28 60 8 31 100 ⌀12 215 180 250 14.5 4 205 185x185 240 430
112M 190 140 70 ⌀28 60 8 31 112 ⌀12 215 180 250 14.5 4 235 200x200 270 480
132S 216 140 89 ⌀38 80 10 41 132 ⌀12 265 230 300 14.5 4 261 245x245 310 567
132M 216 178 89 ⌀38 80 10 41 132 ⌀12 265 230 300 14.5 4 261 245x245 310 567
160M 254 210 108 ⌀42 110 12 45 160 ⌀14.5 300 250 350 18.5 5 320 335x335 450 850
160L 254 254 108 ⌀42 110 12 45 160 ⌀14.5 300 250 350 18.5 5 320 335x335 450 870
180M 279 241 121 ⌀48 110 14 51.5 180 ⌀14.5 300 250 350 18.5 5 355 370x370 500 880
180L 279 279 121 ⌀48 110 14 51.5 180 ⌀14.5 300 250 350 18.5 5 355 370x370 500 980

ZHOUYI is a reliable variable speed AC motor manufacturer and supplier, specializes in design and manufacture industrial electric motors, speed reducers and gearboxes since 1990. With manufacturing process in accordance to IEC standard, our company is committed to providing quality AC electric motors with a variety of model selections and configurations, to meet specific needs for your equipment and machines.
