Product description

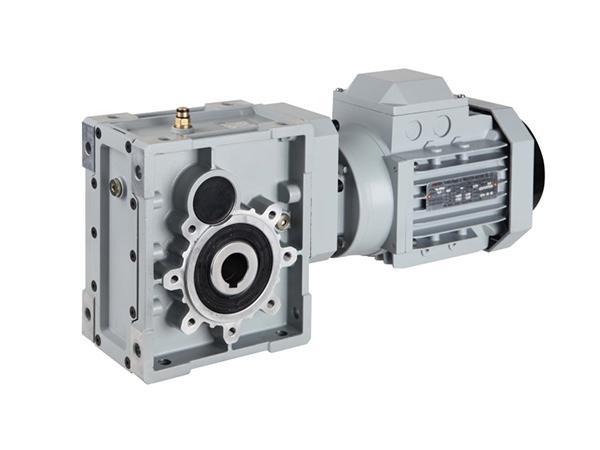

The 120W spiral bevel gearbox speed reducer has small meshing friction so that the transmission efficiency can be up to 90% which is 10%-40% higher than the worm gear speed reducer.

This series of speed reducer can be widely used for food packaging machinery, chemical equipment, wood working machine, crane, construction machinery etc.

Combination parameters

n2 (r/min)	M2max (Nm)	i normal value	i actual value	Fr2 (N)	fs
Output speed	Max output torque	Normal transmission ratio	Actual transmission ratio	Output shaft radial load	Service factor	Speed reducer model	Gear reducer model	Electric motor model
4.8	215	300	291.79	4100	0.6	BKM0503 MV6314	BKM0503 63B5	6314
5.7	180	250	244.29	4100	0.72
7.0	148	200	200.44	4100	0.88
9.5	108	150	146.67	4000	1.2
11.6	89	125	120.34	3770	1.5
13.9	74	100	101.04	3560	1.3
18.8	55	75	74.62	3220	1.5
22	46	60	62.36	3030	2.8
27	39	50	52.36	2860	2.6
24	44	60	58.36	2960	3.0	BKM0502 MV6314	BKM0502 63B5	6314
29	37	50	48.86	2790	3.5
35	30	40	40.09	2610	4.3
48	22	30	29.33	2350	5.9
58	18.1	25	24.07	2200	7.2
69	15.2	20	20.21	2080	6.6
69	15.2	20	20.21	2080	6.6
94	11.2	15	14.92	1880	7.1
112	9.4	12.5	12.47	1770	13.8
134	7.9	10	10.47	1670	12.7
181	5.8	7.5	7.73	1510	13.7
4.6	223	300	302.50	4800	0.9	BKM0633 MV6314	BKM0633 63B5	6314
5.7	179	250	243.57	48CO	1.1
7.1	145	200	196.43	4800	1.2
92	112	150	151.56	4650	1.8
11.5	90	125	122 22	4330	2.0
13.8	75	100	101.27	4070	2.0
19.1	54	75	73.33	3650	2.0
22	47	60	63.33	3480	3.9
27	39	50	52.48	3270	3.9
23	46	60	60.50	3420	4.4	BKM0632 MV6314	BKM0632 63B5	6314
29	37	50	48.71	31S0	5.5
36	30	40	39.29	2970	6.1
46	23	30	30.31	2720	8.8
4.7	219	300	297.21	6500	1.6	BKM0753 MV6314	BKM0753 63B5	6314
5.8	177	250	240.89	6500	2.0
7.0	148	200	200 66	6500	2.0
93	111	150	151 20	6500	3.1
11.1	93	125	126.95	5980	3.2
14.1	73	100	99.22	5520	3.3
18.6	56	75	75.45	5040	3.6
4.7	217	300	295.18	8300	2.3	BKM0903 MV6314	BKM0903 63B5	6314
5.8	177	250	240.89	8300	2.8
7.0	148	200	200.66	8300	3.2
9.3	111	150	151.20	8050	4.5

If you need the detailed model selection, outline dimension and connection dimension information of the speed reducer, you can find them below:

ZHOUYI is a professional 120W spiral bevel gear speed reducer manufacturer and gearbox supplier since 1990, offer adjustable speed drive to match electric motors of different power. With manufacturing process in accordance to IEC standard, our company is committed to providing quality motor speed reducers with a variety of model selections and configurations, to meet specific needs for your industrial machine and equipment.
