Product description

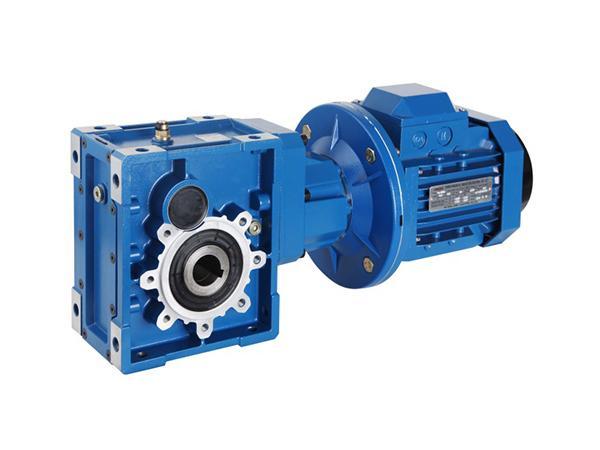

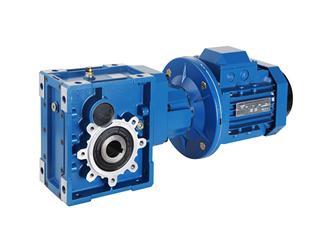

The 550W spiral bevel gearbox speed reducer is made of superior alloy of which the surface is hardened. This speed reducer adopts high precision gear grinding machine for machining. The gear is a kind of hardened face gear of which the strength and service life is greatly higher and longer than that of the worm gear speed reducer.

This series of speed reducer can be widely used for food packaging machinery, chemical equipment, wood working machine, crane, construction machinery etc.

Combination parameters

n2 (r/min)	M2max (Nm)	i normal value	i actual value	Fr2 (N)	fs
Output speed	Max output torque	Normal transmission ratio	Actual transmission ratio	Output shaft radial load	Service factor	Speed reducer model	Gear reducer model	Electric motor model
45	105	60	62.36	2400	1.2	BKM0503 MV7122	BKM0503 71B5/B14	7122
53	88	50	52.36	2270	1.1
35	138	40	40.09	2610	0.94	BKM0502 MV8014	BKM0502 80B5/B14	8014
48	101	30	29.33	2350	1.3
58	83	25	24.07	2200	1.6
69	70	20	20.21	2080	1.4
94	51	15	14.92	1880	1.6
112	43	12.5	12.47	1770	3.0
134	36	10	10.47	1670	2.8
181	27	7.5	7.73	1510	3.0
37	129	25	24.07	2550	1.0	BKM0502 MV8026	BKM0502 80B5/B14	8026
45	109	20	20.21	2410	0.92
60	80	15	14.92	2180	1.0
72	67	12.5	12.47	2050	1.9
86	56	10	10.47	1930	1.8
116	42	7.5	7.73	1750	1.9
23	206	125	122.22	3440	0.87	BKM0633 MV7122	BKM0633 71B5/B14	7122
28	171	100	101.27	3230	0.88
38	124	75	73.33	2900	0.9
44	107	60	63.33	2760	1.7
53	89	50	52.48	2590	1.7
23	209	60	60.50	3430	0.96	BKM0632 MV8014	BKM0632 80B5/B14	8014
29	168	50	48.71	3190	1.2
36	136	40	39.29	2970	1.3
46	105	30	30.31	2720	1.9
57	84	25	24.44	2530	2.1
69	70	20	20.25	2380	2.1
95	51	15	14.67	2130	2.2
110	44	12.5	12.67	2030	4.1
133	36	10	10.50	1910	4.1
184	26	7.5	7.60	1710	4.2
23	216	40	39.29	3440	0.85	BKM0632 MV8026	BKM0632 80B5/B14	8026
30	163	30	30.31	3150	1.2
37	131	25	24.44	2930	1.4
44	109	20	20.25	2760	1.4
61	79	15	14.67	2470	4.4
71	68	12.54	12.67	2360	2.6
86	56	10	10.50	2210	2.7
118	41	7.5	7.60	1990	2.7
11.6	407	250	240.89	5890	0.86	BKM0753 MV7122	BKM0753 71B5	7122
14.0	339	200	200.66	5540	0.9
18.5	255	150	151.20	5040	1.4
22	213	125	125.95	4750	1.4
28	168	100	99.22	4380	1.4
37	127	75	75.45	4000	1.6
45	105	60	62.43	3750	2.8
57	83	50	49.18	3470	2.9
18.6	255	75	75.45	5040	0.8	BKM0753 MV8014	BKM0753	8014
22	211	60	62.43	4730	1.4
28	166	50	49.18	4370	1.4
24	205	60	59.44	4660	1.7	BKM0752 MV8014	BKM0752	8014
29	166	50	48.18	4340	2.1
35	139	40	40.13	4080	2.2
46	104	30	30.24	3720	3.4
56	87	25	25.19	3500	3.5
71	68	20	19.84	3230	3.5
93	52	15	15.09	2950	3.8
14.4	328	60	62.43	5480	0.91	BKM0753 MV8026	BKM0753	8026
18.3	258	50	49.18	5060	0.93
15.1	319	60	59.44	5390	1.1	BKM0752 MV8026	BKM0752 80B5/B14	8026
18.7	259	50	48.18	5030	1.4
22	215	40	40.13	4730	1.4
30	162	30	30.24	4310	2.2
36	135	25	25.19	4050	2.2
45	107	20	19.84	3740	2.3
60	81	15	15.09	3410	2.5
9.5	498	300	295.18	7990	1.0	BKM0903 MV7122	BKM0903 71B5	7122
11.6	407	250	240.89	7470	1.2
14.0	339	200	200.66	7030	1.4
18.5	255	150	151.20	6390	2.0
22	213	125	125.95	6010	2.3
28	168	100	99.22	5550	2.3
37	127	75	75.45	5070	2.4
45	105	60	62.43	4760	4.6
57	83	50	49.18	4390	4.6
9.3	511	150	151.20	8050	1.0	BKM0903 MV8014	BKM0903 80B5/B14	8014
11.1	425	125	125.95	7580	1.1
14.1	335	100	99.22	7000	1.1
18.6	255	75	75.45	6390	1.2
22	211	60	62.43	6000	2.3
28	166	50	49.18	5540	2.3
24	204	60	59.04	5890	2.5	BKM0902 MV8014	BKM0902 80B5/B14	8014
29	166	50	48.18	5500	3.0
35	139	40	40.13	5170	3.5
46	104	30	30.24	4710	4.8
14.4	328	60	62.43	6950	1.5	BKM0903 MV8026	BKM0903 80B5/B14	8026
18.3	258	50	49.18	6420	1.5
15.2	317	60	59.04	6820	1.6	BKM0902 MV8026	BKM0902 80B5/B14	8026
18.7	259	50	48.18	6370	1.9
22	215	40	40.13	6000	2.2
30	162	30	30.24	5460	3.1
36	135	25	25.19	5130	3.5
45	107	20	19.84	4740	3.6
60	81	15	15.09	4330	3.7
9.5	500	300	296.10	8880	1.5	BKM1103 MV7122	BKM1103 71B5	7122
11.5	412	250	244.29	8330	1.8
13.6	348	200	206.29	7870	2.2
18.3	259	150	153.33	7130	2.9
22	219	125	129.48	6740	3.4
27	175	100	103.64	6260	3.7
37	128	75	75.55	5630	4.1
5.7	825	250	244.29	10000	0.91	BKM1103 MV8014	BKM1103 80B5	8014
6.8	697	200	206.29	9920	1.1
9.1	518	150	153.33	8980	1.4
10.8	437	125	129.48	8490	1.7
13.5	350	100	103.64	7880	1.9
18.5	255	75	75.55	7090	2.0
22	217	60	64.18	6720	3.5
27	173	50	51.37	6240	3.7
24	204	60	59.22	6540	3.7	BKM1102 MV8014	BKM1102 80 B5	8014
29	169	50	48.86	6130	4.4
5.9	805	150	153.33	10000	0.93	BKM1103 MV8026	BKM1103 80B5	8026
7.0	680	125	129.48	9840	1.1
8.7	544	100	103.64	9130	1.2
11.9	397	75	75.55	8220	1.3
14.0	337	60	64.18	7780	2.2
17.5	270	50	51.37	7230	2.4
15.2	318	60	59.22	7580	2.4	BKM1102 MV8026	BKM1102 80B5	8026
18.4	262	50	48.86	7110	2.9
22	222	40	41.26	6720	3.4
29	165	30	30.67	6090	4.6

If you need the detailed model selection, outline dimension and connection dimension information of the speed reducer, you can find them below:

ZHOUYI is a professional 550W spiral bevel gear speed reducer manufacturer and gearbox supplier since 1990, offer variable speed drive to match electric motors of different power. With manufacturing process in accordance to IEC standard, our company is committed to providing quality motor speed reducers with a variety of model selections and configurations, to meet specific needs for your industrial machine and equipment.
