Product description

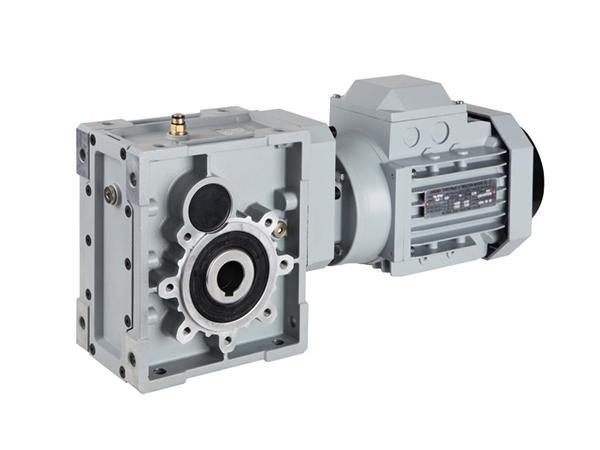

The shell of 4000W spiral bevel gearbox speed reducer is treated by shot blasting first and then anti-corrosion treated so that it is gasoline, xylene and some other organic solvent resistant.

This series of speed reducer can be widely used for food packaging machinery, chemical equipment, wood working machine, crane, construction machinery etc.

Combination parameters

n2 (r/min)	M2max (Nm)	i normal value	i actual value	Fr2 (N)	fs
Output speed	Max output torque	Normal transmission ratio	Actual transmission ratio	Output shaft radial load	Service factor	Speed reducer model	Gear reducer model	Electric motor model
112	314	12.5	12.49	2770	0.96	BKM0752 MV112M4	BKM0752 112B5/B14	112M4
142	247	10	9.84	2550	1.0
187	188	7.5	7.48	2330	1.1
112	314	12.5	12.49	3510	1.5	BKM0902 MV112M4	BKM0902 112B5/B14	112M4
142	247	10	9.84	3240	1.5
187	188	7.5	7.48	2950	1.6
46	770	30	30.67	5250	1.0	BKM1102 MV112M4	BKM1102 112B5/B14	112M4
54	650	25	25.90	4960	1.2
68	520	20	20.73	4610	1.2
93	379	15	15.11	4150	1.4
109	322	12.5	12.84	3930	2.3
136	258	10	10.27	3650	2.5
187	188	7.5	7.49	3280	2.8

If you need the detailed model selection, outline dimension and connection dimension information of the speed reducer, you can find them below:

ZHOUYI is a professional 4000W spiral bevel gear speed reducer manufacturer and gearbox supplier since 1990, offer variable speed drive to match electric motors of different power. With manufacturing process in accordance to IEC standard, our company is committed to providing quality motor speed reducers with a variety of model selections and configurations, to meet specific needs for your industrial machine and equipment.
