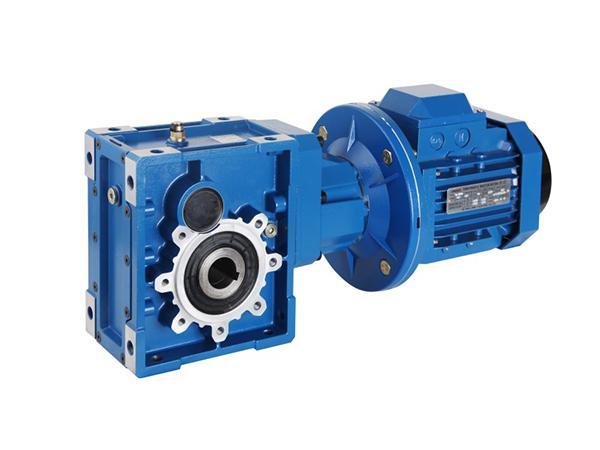

The gear of 3000W spiral bevel gearbox speed reducer adopts high precision gear grinding machine for machining. The gear is a kind of hardened face gear of which the strength and service life is greatly higher and longer than that of the worm gear speed reducer.
This series of speed reducer can be widely used for food packaging machinery, chemical equipment, wood working machine, crane, construction machinery etc.
Combination parameters
n2 (r/min)
M2max (Nm)
i normal value
i actual value
Fr2 (N)
fs
Output speed
Max output torque
Normal transmission ratio
Actual transmission ratio
Output shaft radial load
Service factor
Speed reducer model
Gear reducer model
Electric motor model
112
235
12.5
12.49
2770
1.3
BKM0752 MV100L2-4
BKM0752 100B5/B14
100L24
142
185
10
9.84
2550
1.3
187
141
7.5
7.48
2330
1.4
46
569
30
30.24
4710
0.9
BKM0902 MV100L24
BKM0902 100B5/B14
100L24
56
474
25
25.19
4430
1.0
71
374
20
19.84
4090
1.0
93
284
15
15.09
3730
1.1
112
235
12.5
12.49
3510
2.0
142
185
10
9.84
3240
2.1
187
141
7.5
7.48
2950
2.1
44
591
60
64.18
5330
1.3
BKM1103 MV100L2
BKM1103 100B5/B14
100L2
55
473
50
51.37
4950
1.4
34
777
40
41.26
5800
0.97
BKM1102 MV100L2-4
BKM1102 100B5/B14
100L24
46
577
30
30.67
5250
1.3
54
488
25
25.90
4960
1.5
68
390
20
20.73
4610
1.7
93
284
15
15.11
4150
1.8
109
242
12.5
12.84
3930
3.1
136
193
10
10.27
3650
3.4
187
141
7.5
7.49
3280
3.7
35
759
25
25.90
5750
1.0
BKM1102 MV132S6
BKM1102 132B5
132S6
43
607
20
20.73
5340
1.1
60
443
15
15.11
4810
1.2
70
376
12.5
12.84
4550
2.0
88
301
10
10.27
4220
2.2
120
219
7.5
7.49
3800
2.4
If you need the detailed model selection, outline dimension and connection dimension information of the speed reducer, you can find them below:
ZHOUYI is a professional 3000W spiral bevel gear speed reducer manufacturer and gearbox supplier since 1990, offer variable speed drive to match electric motors of different power. With manufacturing process in accordance to IEC standard, our company is committed to providing quality motor speed reducers with a variety of model selections and configurations, to meet specific needs for your industrial machine and equipment.
