Product description

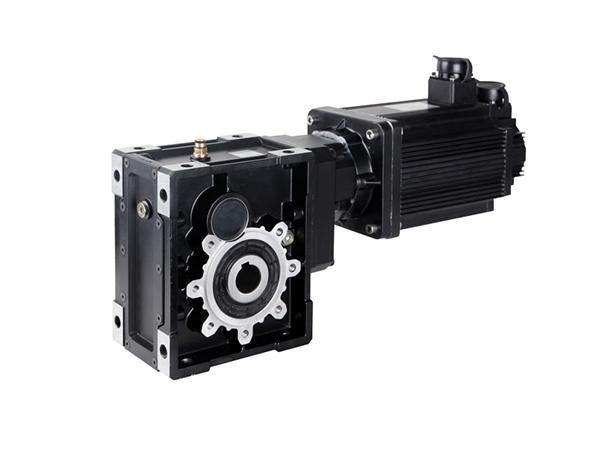

The shell of 2200W spiral bevel gearbox speed reducer is made of aluminum alloy or gray cast iron which is attractive and durable.

This series of speed reducer can be widely used for food packaging machinery, chemical equipment, wood working machine, crane, construction machinery etc.

Combination parameters

n2 (r/min)	M2max (Nm)	i normal value	i actual value	Fr2 (N)	fs
Output speed	Max output torque	Normal transmission ratio	Actual transmission ratio	Output shaft radial load	Service factor	Speed reducer model	Gear reducer model	Electric motor model
46	418	30	30.24	3720	0.84	BKM0752 MV100L1-4	BKM0752 100B5/B14	100L14
56	348	25	25.19	3500	0.86
71	274	20	19.84	3230	0.88
93	208	15	15.09	2950	0.96
112	172	12.5	12.49	2770	1.7
142	136	10	9.84	2550	1.8
187	103	7.5	7.48	2330	1.9
72	268	12.5	12.49	3210	1.1	BKM0752 MV112M6	BKM0752 112B5/B14	112M6
91	211	10	9.84	2960	1.1
120	161	7.5	7.48	2700	1.2
45	422	60	62.43	4760	1.1	BKM0903 MV90L2	BKM0903 90B5/B14	90 L2
57	332	50	49.18	4390	1.1
35	554	40	40.13	5170	0.87	BKM0902 MV100L14	BKM0902 100B5/B14	100L14
46	418	30	30.24	4710	1.2
56	348	25	25.19	4430	1.4
71	274	20	19.84	4090	1.4
93	208	15	15.09	3730	1.4
112	172	12.5	12.49	3510	2.8
142	136	10	9.84	3240	2.8
187	103	7.5	7.48	2950	2.9
36	541	25	25.19	5130	0.9	BKM0902 MV112M6	BKM0902 112B5/B14	112M6
45	426	20	19.84	4740	0.9
60	324	15	15.09	4330	0.93
72	268	12.5	12.49	4060	1.8
91	211	10	9.84	3750	1.8
120	161	7.5	7.48	3420	1.9
22	874	125	129.48	6740	0.86	BKM1103 MV90L2	BKM1103 90B5/B14	90L2
27	700	100	103.64	6260	0.93
37	510	75	75.55	5630	1.0
44	433	60	64.18	5330	1.7
55	347	50	51.37	4950	1.9
24	818	60	59.22	6540	0.92	BKM1102 MV100L14	BKM1102 100B5/B14	100L14
29	675	50	48.86	6130	1.1
34	570	40	41.26	5800	1.3
46	423	30	30.67	5250	1.8
54	358	25	25.90	4960	2.1
68	286	20	20.73	4610	2.3
93	209	15	15.11	4150	2.5
109	177	12.5	12.84	3930	4.2
136	142	10	10.27	3650	4.6
187	103	7.5	7.49	3280	5.0
29	659	30	30.67	6090	1.1	BKM1102 MV112M6	BKM1102 112B5/B14	112M6
35	556	25	25.90	5750	1.3
43	445	20	20.73	5340	1.5
60	325	15	15.11	4810	1.6
70	276	12.5	12.84	4550	2.7
88	221	10	10.27	4220	2.9
120	161	7.5	7.49	3800	3.2

If you need the detailed model selection, outline dimension and connection dimension information of the speed reducer, you can find them below:

ZHOUYI is a professional 2200W spiral bevel gear speed reducer manufacturer and gearbox supplier since 1990, offer variable speed drive to match electric motors of different power. With manufacturing process in accordance to IEC standard, our company is committed to providing quality motor speed reducers with a variety of model selections and configurations, to meet specific needs for your industrial machine and equipment.
