Product description

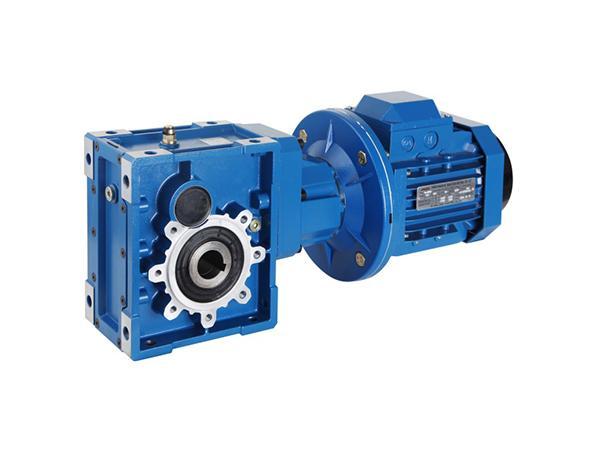

The 1100W spiral bevel gearbox speed reducer is made of 20CrMnTi. It also adopts carbonitriding to improve the hardness.

This series of speed reducer can be widely used for food packaging machinery, chemical equipment, wood working machine, crane, construction machinery etc.

Combination parameters

n2 (r/min)	M2max (Nm)	i normal value	i actual value	Fr2 (N)	fs
Output speed	Max output torque	Normal transmission ratio	Actual transmission ratio	Output shaft radial load	Service factor	Speed reducer model	Gear reducer model	Electric motor model
112	86	12.5	12.47	1770	1.5	BKM0502 MV90S4	BKM0502 90B5/B14	90S4
134	72	10	10.47	1670	1.4
181	53	7.5	7.73	1510	1.5
72	134	12.5	12.47	2050	0.97	BKM0502 MV90L6	BKM0502 90B5/B14	90 L6
86	112	10	10.47	1930	0.89
116	83	7.5	7.73	1750	0.96
46	209	30	30.31	2720	0.96	BKM0632 MV90S4	BKM0632 90B5/B14	90S4
57	169	25	24.44	2530	1.1
69	140	20	20.25	2380	1.1
95	101	15	14.67	2130	1.1
110	87	12.5	12.67	2030	2.1
133	72	10	10.50	1910	2.1
184	52	7.5	7.60	1710	2.1
71	136	12.5	12.67	2360	1.3	BKM0632 MV90L6	BKM0632 90B5/B14	90 L6
86	113	10	10.50	2210	1.3
118	82	7.5	7.60	1990	1.3
45	211	60	62.43	3750	1.4	BKM0753 MV8022	BKM0753 80B5/B14	8022
57	166	50	49.18	3470	1.4
24	410	60	59.44	4660	0.85	BKM0752 MV90S4	BKM0752 90B5/B14	90S4
29	333	50	48.18	4340	1.1
35	277	40	40.13	4080	1.1
46	209	30	30.24	3720	1.7
56	174	25	25.19	3500	1.7
71	137	20	19.84	3230	1.8
93	104	15	15.09	2950	1.9
112	86	12.5	12.49	2770	3.5
142	68	10	9.84	2550	3.5
187	52	7.5	7.48	2330	3.9
30	325	30	30.24	4310	1.1	BKM0752 MV90L6	BKM0752 90B5/B14	90L6
36	271	25	25.19	4050	1.1
45	213	10	19.84	3740	1.1
60	162	15	15.09	3410	1.2
72	134	12.5	12.49	3210	2.2
91	106	10	9.84	2960	2.3
120	80	7.5	7.48	2700	2.5
18.5	511	150	151.20	6390	1.0	BKM0903 MV8022	BKM0903 80B5/B14	8022
22	425	125	125.95	6010	1.1
28	335	100	99.22	5550	1.1
37	255	75	75.45	5070	1.2
45	211	60	62.43	4760	2.3
57	166	50	49.18	4390	2.3
22	422	60	62.43	6000	1.1	BKM0903 MV90S4	BKM0903 90B5/B14	90S4
28	332	50	49.18	5540	1.1
24	408	60	59.04	5890	1.2	BKM0902 MV90S4	BKM0902 90B5/B14	90S4
29	333	50	48.18	5500	1.5
35	277	40	40.13	5170	1.7
46	209	30	30.24	4710	2.4
56	174	25	25.19	4430	2.8
71	137	20	19.84	4090	2.8
93	104	15	15.09	3730	2.9
15.2	634	60	59.04	6820	0.8	BKM0902 MV90L6	BKM0902 90B5/B14	90L6
18.7	517	50	48.18	6370	0.97
22	431	40	40.13	6000	1.1
30	325	30	30.24	5460	1.5
36	271	25	25.19	5130	1.8
45	213	20	19.84	4740	1.8
60	162	15	15.09	4330	1.9
72	134	12.5	12.49	4060	3.6
91	106	10	9.84	3750	3.6
120	80	7.5	7.48	3420	3.7
11.5	825	250	244.29	8330	0.91	BKM1103 MV8022	BKM1103 80B5	8022
13.6	697	200	206.29	7870	1.1
18.3	518	150	153.33	7130	1.4
22	437	125	129.48	6740	1.7
27	350	100	103.64	6260	1.9
37	255	75	75.55	5630	2.0
44	217	60	64.18	5330	3.5
55	173	50	51.37	4950	3.7
10.8	874	125	129.48	8490	0.86	BKM1103 MV90S4	BKM1103 90B5/B14	90S4
13.5	700	100	103.64	7880	0.93
18.5	510	75	75.55	7090	1.0
22	433	60	64.18	6720	1.7
27	347	50	51.37	6240	1.9
24	409	60	59.22	6540	1.8	BKM1102 MV90S4	BKM1102 90B5/B14	90S4
29	337	50	48.86	6130	2.2
34	285	40	41.26	5800	2.6
46	212	30	30.67	5250	3.5
54	179	25	25.90	4960	4.2
68	143	20	20.73	4610	4.5
14	674	60	64.18	7780	1.1	BKM1103 MV90L6	BKM1103 90B5/B14	90L6
17.5	540	50	51.37	7230	1.2
15.2	636	60	59.22	7580	1.2	BKM1102 MV90L6	BKM1102 90B5/B14	90L6
18.4	525	50	48.86	7110	1.4
22	443	40	41.26	6720	1.7
29	329	30	30.67	6090	2.3
35	278	25	25.90	5750	2.7
43	223	20	20.73	5340	2.9
60	162	15	15.11	4810	3.2

If you need the detailed model selection, outline dimension and connection dimension information of the speed reducer, you can find them below:

ZHOUYI is a professional 1100W spiral bevel gear speed reducer manufacturer and gearbox supplier since 1990, offer variable speed drive to match electric motors of different power. With manufacturing process in accordance to IEC standard, our company is committed to providing quality motor speed reducers with a variety of model selections and configurations, to meet specific needs for your industrial machine and equipment.
